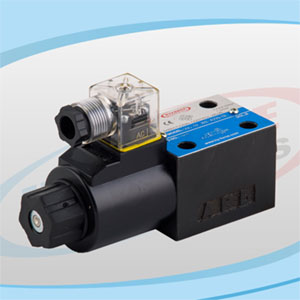

DSG-02 Series Solenoid Operated Directional Control Valves

DSG-02 series solenoid operated directional control valves are solenoid operated directional spool valves, these valves are used to start, stop and direct the oil flow.
Size:
Cetop 3 / NG6
Voltage:
DC12 DC24 AC110 AC220
Unit Weight:
1.55kg / 1.8kg for single solenoid valve 2.1kg / 2.5kg for double solenoids valve
Working Pressure:
31.5MPa
Flow Rate:
63l/m
Quantity:
Inquire Add to Basket

  • DSG-02-3C2-D12-DL, DSG-02-3C2-D24-DL, DSG-02-3C2-A110-DL, DSG-02-3C2-A220-DL, DSG-02-3C60-D12-DL, DSG-02-3C60-D24-DL, DSG-02-3C60-A110-DL, DSG-02-3C60-A220-DL, DSG-02-2D2-D12-DL, etc.

  • HYFORCE HYDRAULICS / OEM is also avaliable.

  • A17-A18
