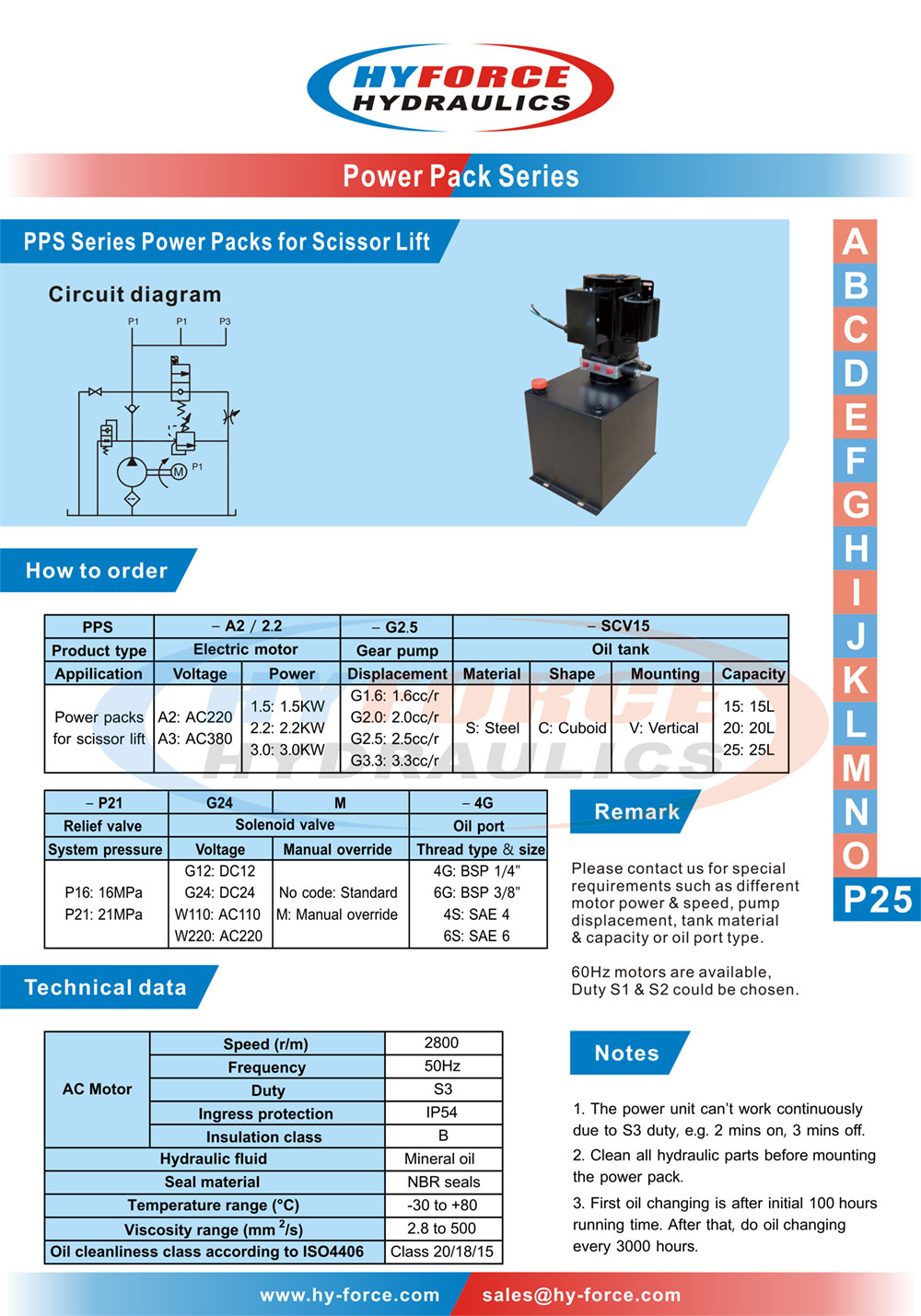

PPS Series Power Packs for Scissor Lift

This power pack is designed for a lift table, which is consisted of high pressure gear pump, AC motor, multi-functional manifold, valves, tank, etc. The lowering movement is activated by a solenoid valve and the speed is controlled by a needle valve.

Port Size:	BSP 1/4" BSP 3/8" SAE-4 SAE-6
Motor voltage:	AC220 AC380
Working Pressure:	16MPa 21MPa
Pump displacement:	1.6cc/r 2.0cc/r 2.5cc/r 3.3cc/r
Tank capacity:	15L 20L 25L
Quantity:



Inquire Add to Basket

Model:
PPS-A2/2.2-G2.5-SCV15-P21-G24M-4G, PPS-A2/2.2-G2.5-SCV20-P21-G24M-4G, PPS-A2/2.2-G3.3-SCV25-P21-G24M-6G, PPS-A2/2.2-G2.5-SCV15-P21-G12M-4G, PPS-A2/2.2-G2.5-SCV15-P21-W220M-4G, etc.
Brand:
HYFORCE HYDRAULICS / OEM is also avaliable.
Code:
P25-P26

Product Category

PPS Series Power Packs for Scissor Lift
